Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 10mm | Module Size: | 10000dots/sqm |
|---|---|---|---|
| Confirguration: | 1R1G1B | Leds Type: | SMD3535 |
| Cabinet Size: | 1280mm X 1920mm | Maintainance: | Front Access |
| High Light: | outdoor advertising LED display,outside advertising boards |
||
Front Open Cabinet SMD 10mm Advertising LED wall display screen WIFI / 3G System
Description
1. Front access led screen, it also called front service. Led screen have front access and rear access two types. Mostly we used rear access cabinets, while if led screen height is not very high(usually less than 2 meters), you can choose front access led cabinet.
2. It is very to install, only need a angle iron and some screws to fix on wall.

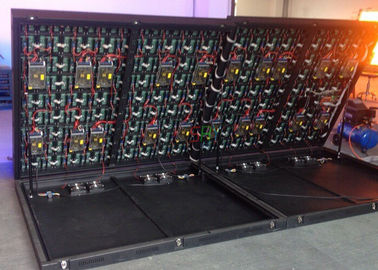

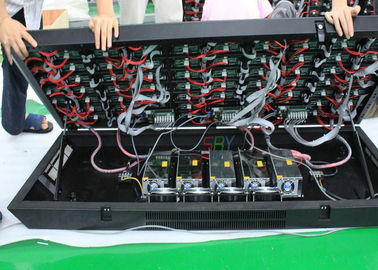

3. When led modules, cables or power supply dont work well, we can open the led cabinet from front side to replace or repair broken parts.
Features
1. SMD3-in-1 technology are used for indoor LED display.
2. Wide view angle: 140 in horizonal and 140 in vertical.
3. Special design and advanced SMT technology improves the heat dissipation.
4. With high refresh rate controller, guarantee that no scan line when taking photos.
5. Slim and lightweight design.
6. Easy for assembling and connecting with fast lock and the connector added.
7. High color uniformity and clear image can bring you a vivid audio visual effect.
Factory Equipment
Wave Soldering Conveyor, PC Console, Wave Soldering Machine, Automatic Glue- pouring Machine, Solder Paste Printing Machine, Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester, Medium-speed Automatic SMT Machine,
Super Mute Terminal Machine, Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.
Specification
|
Pixel Pitch |
10mm |
|
Pixel Density |
10000dots/sqm |
|
Color Configuration |
1R1G1B |
|
Module Size |
320mm x 160mm |
|
Standard Cabinet Size |
1280mm x 1920mm |
|
Brightness |
>6500cd/sqm |
|
Viewing Distance |
10m-100m |
|
Viewing Angle |
H: 120°; V:120° |
|
Refresh Rate |
2000HZ |
|
Grey Scale |
16.7M colors(Synchronized) |
|
Color Temperature |
R.G.B brightness 256 level adjustable |
|
Power Input |
AC110V/ 220V ±10％, 50HZ |
|
Max Power Consumption |
700W/sqm |
|
Ave. Power Consumption |
250W/sqm |
|
Working Temperature |
-20℃~+50℃ |
|
Blind Spot Rate |
<1/10000 |
|
MTBF |
>10,000 Hours |
|
Life Span |
>100,000 Hours |
|
Waterproof |
IP65 |
|
Operating Humidity |
10%~95% |
|
Control Method |
Synchronous, Asynchronous, 3G,WIFI,USB |
|
Video Signal Mode |
RF, S-Video, RGB, RGBHV, YUV, YC etc |

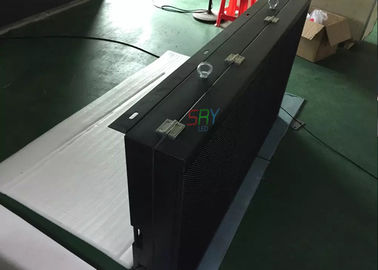

Product Images
