Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 10mm | Resolution: | 10000 Dots/sqm |
|---|---|---|---|
| Installation: | Hanging Or Fixed | Viewing Distance: | 8-250M |
| Control Way: | 3G / WIFI | Warranty: | 2 Years |
| High Light: | outdoor advertising LED display,outside advertising boards |
||
Double Sided RGB Outdoor Full Color LED Display Poster Windows Hanging LED advertising signs
Description
Double sided led sign equals two single sided led sign, but it is a indepent structure, no need extra installation structure to support it. It can be hang and fixed on poles. Double sided led sign can be opened on both sides, it will be easy for customers to maintain. Features is as below:
1. DIP LED encapsulation confirm the high brightness even under strong sunlight
2. Front open front service led cabinet, easy and convenient to maintenance the LED Display
3. Long viewing distance, high definition, good uniformity
4. Can be set to turn on and turn off the screen automatically
5. Good protection level waterproof IP65, anti-corrosion, oxidation resistance, long life span
6. Brightness can be adjusted automatically according to different surroundings.
7. Support all types of video, graphics, animation,message, etc, support PC online or offline control, also can remote control with asynchronous system, Wifi control, 3G control.
Our Service
1) Reply your inquiry in 24 working hours.
2) Experienced staffs answer all your query in fluent English, Spainish etc
3) Customized design is available,OEM & ODM are welcomed.
4) Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
5) Special discount and protection of sales area provided to our distributor.
6) Warmly welcome your visit in our company if available.
7) Warranty: 24 months, a little investment for longer warranty time.
Specification
| Unit Module | Item | Parameter |
| Model Number | DIP P10 LED display | |
| Module size | 160mm*160mm | |
| Pixel pitch | 10mm | |
| Pixel configuration | 10000dots/m2 | |
| Pixel resolution | 16dots(W)*16dots(H) | |
| Max Power consumption | 26W | |
| Module thickness | 2.5CM | |
| Weight | 0.42kg | |
| Drive type | Constant drive | |
| Scan mode | 1/4 scan | |
| Port type | HUB75B | |
| Brightness of white balance | ≥7500cd/m2 | |
| LED Cabinet | Dimension | 960mm*960mm |
| Quantity of Module | 36 | |
| Power supply | 5V/40A 5V/60A | |
| Pixel per cabinet | 96*96 | |
| Best viewing distance | 8M~250M | |
| Best viewing distance | 160°(W) 120°(H) | |
| Temperature |
storage:-35℃~+85℃ working:-20℃~+60℃ |
|
| Operation humidity | 10%-95% | |
| Power | Working voltage | AC220V±10% |
| Average Power consumption | 200W | |
| Max.Power consumption | 600W | |
| Current | ≤20mA(single LED) | |
| Control system | CPU | Pentium4 or above P4 |
| Operation system | XP/WIN7/8/10 | |
| Control method | Synchronization | |
| Main technical parameter | LAMP | EPISTAR |
| Driving device | MBI5024 | |
| Refresh frequency | ≥600HZ | |
| Grey scale/colors | 256levels of each color(RGB)/16.7M colors | |
| MTBF | ≥100000hours | |
| Power switch | Automatic switch |
Applications
Supermarket, shopping malls, parks, exhibition halls, stadiums, museums, commercial buildings, star-rated hotels, high way, banks, stores, companies, hospital, schools, subway, airports, stations

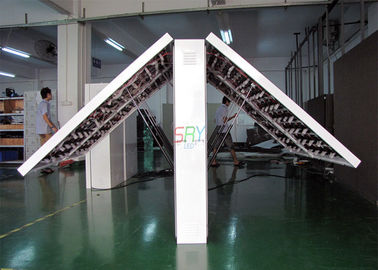

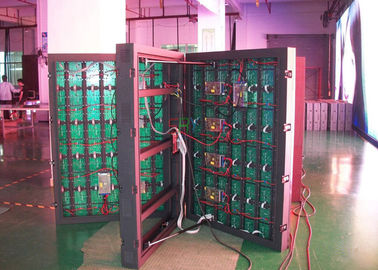

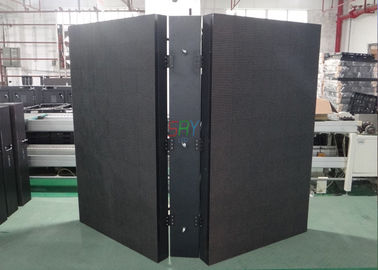

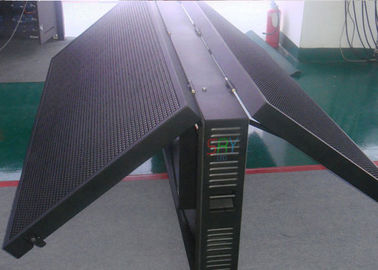

Product Images
