Product Details:
Payment & Shipping Terms:
|
| Input Voltage: | AC 110V - 220V ± 5%, 50HZ | Warranty: | 2 Full Years |
|---|---|---|---|
| Cabinet Material: | Stainless Steel | Lifespan: | 100,000hours |
| Module Size: | 160mm X 160mm | Cabinet Size: | 640mm X 640mm |
| High Light: | curved led display,curved led panels |
||

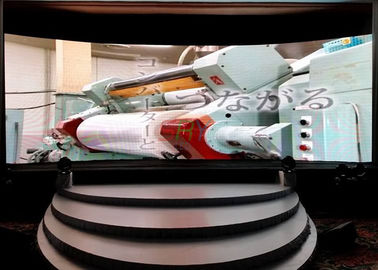

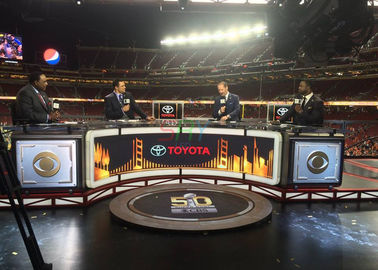

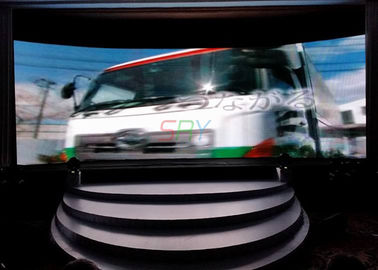

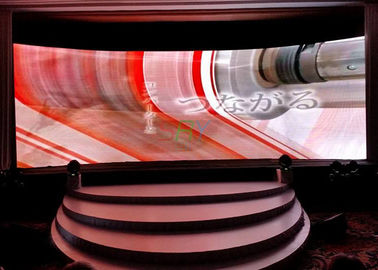

Indoor Curved P2.5 High Resolution LED Video Wall Panels Advertising for TV Studio Show
Quick Information
1. Stable quality,fast delivery.
2. Suitable brightness:>1,500 nits.
3. Scan driver:1/32 constant current.
4. Module size(L*W):160x160mm;Cabinet size:640*640mm.
Features
1. Superb workmanship to ensure every processing details.
2. Energy saveing design and good performance in color uniformity.
3. High brightness meet the needs of various application environments.
4. Environmental raw material (LED chips, mask, glue, and steel cabinets).
5. Large viewing angle. Horizontal:120 ° , Vertical: 120°.
Specifications
| Item | Unit | Parameter |
| Pixels(Pixel Pitch) | mm | 2.5mm |
| Pixel Density | dots/sqm | 160,000dots/sqm |
| Color Configuration | 1R1G1B 3in1 | |
| LED Encapsulation | SMD2121 | |
| Drive Duty | scan | 1/32scan |
| Cabinet Resolution | dots | 256dots x 256dots |
| Cabinet Size | mm | 640mm x 640mm |
| Cabinet Weight | kg | ≈25kg |
| Brightness | nits | >1,500nits |
| Best Viewing Distance | m | 2.5m - 25m |
| Best Viewing Angle | ° | H:120 °, V: 120° |
| Lifespan | hours | >100,000hours |
| MTBF | hours | >10,000hours |
| Working Temperature | Celsius | -20Celsius - +60Celsius |
| Working Humidity | 10% - 95%RH | |
| Warranty | 2 Full Years | |
| Certificate | CE, LVD, RoHS |
1. Good performance in flatness, uniformity, consistency and clarity.
2. High-precision optical design of LED, each pixel is integrated by RGB LED chips.
3. Perfect color mixing efficiency: rational design on reflector and chip arrangement makes RGB colors mixed and condensed sufficiently and creates no granular sensation.
4. The raw material of all of the outdoor products including LED chips, mask, glue and steel cabinets have the ability of enduring high temperature and high humidity , and being anti-UV, waterproof, anticorrosion and antirust.
