Product Details:
Payment & Shipping Terms:
|
| Input Voltage: | AC 110V - 220V ±15%, 50HZ | Cabinet Material: | Aluminum |
|---|---|---|---|
| Waterproof: | IP65 | Cabinet Size: | 500mm X 1,000mm |
| Cabinet Weight: | 12kg | Lifespan: | >100,000hours |
| Warranty: | 2 Full Years | Certificate: | CE, LVD, RoHS |
| High Light: | outdoor advertising LED display,outside advertising boards |
||
P5.95mm waterproof LED screen , 500*1000mm LED Advertising Screens

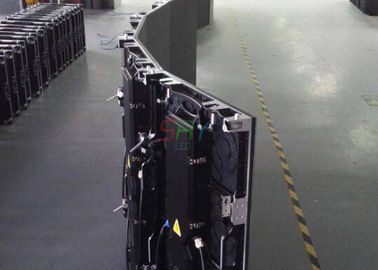

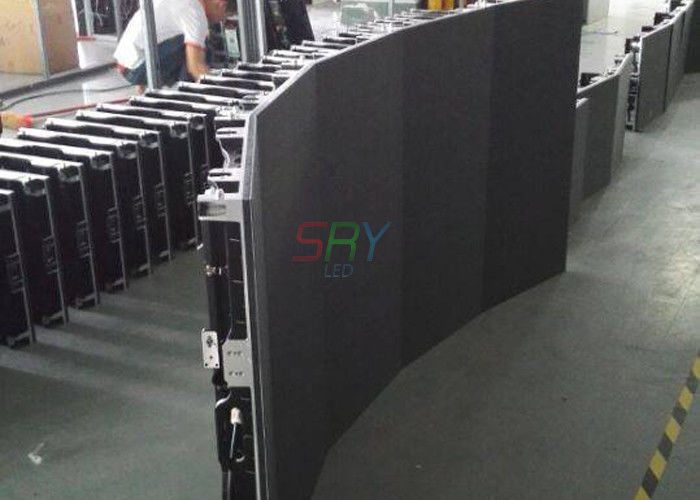

Outdoor P5.95mm LED Display Cabinet 500*1000mm Full Color LED Advertising Screens . Its cabinet has super light design, which saves labor cost. At the meantime, with energy-saving design. It becomes very popular. And the cabinet can be curved use. Angle can be adjusted.
Super Thin, Super Clear, Super Bright, Super Light >>
Specially Magnalium Alloy material, Specially light weight , which is lighter >5KG more than common Die-cast cabinet( 19.8KG/SQM indoor models, 29.8KG/SQM outdoor models)
Clear show effect,seamless splice<0.1mm;
Thin and light design and fast lock, easy to assemble and disassemble in 10S a cabinet;
High refresh rate with Nova / Linsn / Mooncell System, good show in camera / mobile or TV;
Consistent color temperature and brightness,no mosiac and blind spot;
Suitable for any indoor or outdoor, fixed or rental application
Specification:
Pixel Pitch | 5.95mm |
Pixel Density | 28,224dots/sqm |
Tube Chip Color | Full Color |
Color Configuration | 1R1G1B 3in1 |
LED Encapsulation | SMD3535 |
Module Size | 250mm x 250mm |
Module Resolution | 42dots x 42dots |
Cabinet Size | 500mm x 1,000mm |
Cabinet Resolution | 84dots x 168dots |
Drive Duty | 1/7 Constant Current |
Brightness | >6,500nits |
Viewing Distance | 6m - 60m |
Viewing Angle | H: 120°, V120° |
Refresh Rate | 2,000HZ |
Frame Rate | 120frame/sec |
Grey Grade | 256levels of Each Color |
Color Grade | 16.7M |
Power Input | AC110V - 220V ±15%, 50HZ |
Max Power Consumption | 630W/sqm |
Ave. Power Consumption | 315W/sqm |
Storage Temperature | -40℃ - +80℃ |
Working Temperature | -20℃ - +60℃ |
Blind Spot Rate | <1/10,000 |
MTBF | >10,000 Hours |
Life Span | >100,000 Hours |
Cabinet Weight | 12kg |
Operating Humidity | 10% - 95% |
Control System | Synchronous, Asynchronous |
Operating System | Win 98, Win2000, XP, 07.etc |
Input Source | All Format (AVI, MPEG,VOB, RM, etc) |
Certificate | CE, LVD, RoHS |
Application:
Outdoor Full Color LED Display Are Very Popular In Advertising Field. This Type Screen Are Popular Used Outdoor Shopping Center , Outdoor Building, Foodball Field, crossroad, highway, Concert, airport etc;
Related Projects:
Competitive Advantages:
1. Vivid and brilliant color, sharp and smooth images.
2. Superb performance / price ratio solution for rental market.
3. 2 full years warranty. 24hours/week on-line service.
4. Plug and play, without tools to install / uninstall one cabinet in 6s.
5. One set cabinet structure is compatiable with various pixel pitches module.
