3mm Indoor LED Cabinet SMD2121 1/16 Scan Constant Current LED Advertising Screen

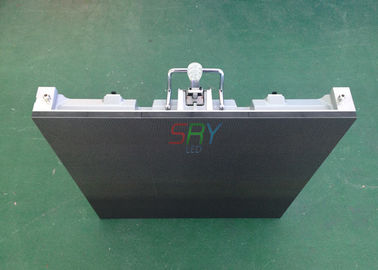

Large Image : 3mm Indoor LED Cabinet SMD2121 1/16 Scan Constant Current LED Advertising Screen

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	SRYLED
Certification:	CE, LVD, RoHS
Model Number:	SRY-IF-P3

Payment & Shipping Terms:

Minimum Order Quantity:	4pcs
Price:	US$ 1,450 ~ 1,480 / Square Meter
Packaging Details:	Flight Case (0.90x0.68x0.78m，case size based on cabinet size. 6 cabinets in 1flight case)
Delivery Time:	10-12 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, PayPal
Supply Ability:	1,000 Square Meter per Month

Contact Now

Detailed Product Description

Pixel Pitch:	3mm	LED Encapsulation:	SMD2121
Module Size:	192mm X 96mm	Drive Duty:	1/16scan Constant Current
Cabinet Weight:	9kg	Cabinet Color:	Blue
Cabinet Material:	Die - Casting Al	Certificate:	CE, LVD, RoHS
High Light:	LED screen Cabinet , LED Cabinet

3mm Indoor LED Cabinet SMD2121 1/16 Scan Constant Current LED Advertising Screen

Decription:

P3 unit board adopts mainly two LED encapsulation. One kind is SMD0805, another kind is SMD2121. For the price, SMD0805 is cheaper than SMD2121. For the performance, SMD 2121 is better than SMD0805. Coincide with the development trend of the market, the price differences between them become smaller and smaller. Hence the module with SMD2121’s cost-effective become higher and higher.

Features:

1. Screen brightness can be adjustable via LED Studio.

2. Screen working humidity: 10% ~ 95%.

3. Screen working temperature: -20ºc ~ +60ºc.

4. Energy saving design makes sure low power consumption.

Specification:

Pixel Pitch	3mm
Pixel Density	111,111dots/sqm
Tube Chip Color	Full Color
Color Configuration	1R1G1B 3in1
LED Encapsulation	SMD2121
Module Size	192mm x 192mm
Module Resolution	32dots x 32dots
Cabinet Size	576mm x 576mm
Cabinet Resolution	192dots x 192dots
Drive Duty	1/16 Constant Current
Brightness	≥1500nits
Viewing Distance	3m - 30m
Viewing Angle	H: 120°; V:120°
Refresh Rate	2000HZ
Frame Rate	120frame/sec
Grey Grade	256levels of Each Color
Color Grade	16.7M
Power Input	5V-20A, AC110V/ 220V/ 50HZ
Max Power Consumption	360W/sqm
Ave. Power Consumption	180W/sqm
Storage Temperature	-40℃~+80℃
Working Temperature	-20℃~+60℃
Blind Spot Rate	<1/10000
MTBF	>10,000 Hours
Life Span	>100,000 Hours
Cabinet Weight	9kg
Operating Humidity	10%~95%
Control System	Synchronous, Asynchronous
Operating System	Win 98, Win2000, XP, 07.etc
Input Source	All Format (AVI, MPEG,VOB, RM, etc)
Certificate	CE, LVD, RoHS
