1R1G1B IP65 P16 LED Screen Cabinet 8000cd / sqm With Steel Cabinet Material

Large Image : 1R1G1B IP65 P16 LED Screen Cabinet 8000cd / sqm With Steel Cabinet Material

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	SRYLED
Certification:	CE, LVD, RoHS
Model Number:	SRY-OF-P16

Payment & Shipping Terms:

Minimum Order Quantity:	4pcs
Price:	US$ 650 ~ 720 / Square Meter
Packaging Details:	Wooden Case (1.5x0.50x1.15m，case size based on cabinet size. 2 cabinets in 1 wooden case)
Delivery Time:	10-12 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, PayPal
Supply Ability:	1,000 Square Meter per Month

Contact Now

Detailed Product Description

Pixel Pitch:	16mm	LED Encapsulation:	DIP346
Module Size:	256mm X 256mm	Cabinet Size:	1,024mm X 1,024mm
Cabinet Weight:	60kg	Cabinet Color:	Grey
Cabinet Material:	Steel	Certificate:	CE, LVD, RoHS
High Light:	LED Cabinet , LED display screen

1R1G1B IP65 P16 LED Screen Cabinet 8000cd / sqm With Steel Cabinet Material

Decription:

Static P16, with higher refresh rate, higher brightness, it becomes more and more fashionable. Also its cost-effective is higher than 1/4scan type P16.

Features:

1. High brightness: >8000cd/sqm

2. Screen working humidity: 10% ~ 95%.

3. Screen working temperature: -20ºc ~ +60ºc.

4. Energy saving design makes sure low power consumption.

Specification:

Pixel Pitch	16mm
Pixel Density	3,906dots/sqm
Tube Chip Color	Full Color
Color Configuration	1R1G1B
LED Encapsulation	DIP346
Module Size	256mm x 256mm
Module Resolution	16dots x 16dots
Cabinet Size	1,024mm x 1,024mm
Cabinet Resolution	64dots x 64dots
Drive Duty	Static Constant Current
Brightness	>8,000nits
Viewing Distance	16m - 160m
Viewing Angle	H: 120°; V:70°
Refresh Rate	2,000HZ
Frame Rate	120frame/sec
Grey Grade	256levels of Each Color
Color Grade	16.7M
Power Input	5V-20A, AC110V/ 220V/ 50HZ
Max Power Consumption	400W/sqm
Ave. Power Consumption	1,200W/sqm
Storage Temperature	-40℃~+80℃
Working Temperature	-20℃~+60℃
Blind Spot Rate	<1/10000
MTBF	>10,000 Hours
Life Span	>100,000 Hours
Waterproof	IP65
Cabinet Weight	60kg
Operating Humidity	10%~95%
Control System	Synchronous, Asynchronous
Operating System	Win 98, Win2000, XP, 07.etc
Input Source	All Format (AVI, MPEG,VOB, RM, etc)
Certificate	CE, LVD, RoHS

Application:

Outside supermarket, express way, large-scale shopping malls, exclusive agency, chain shops, star-rated hotel, restaurant and ect for advertising use.

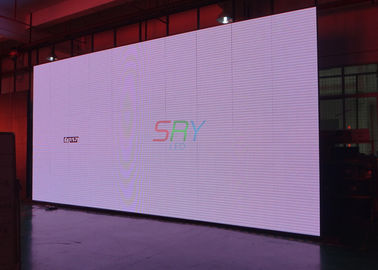

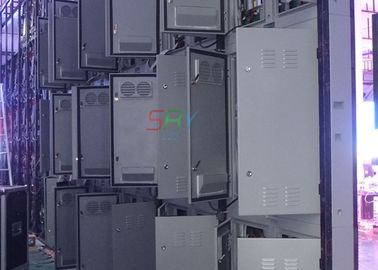

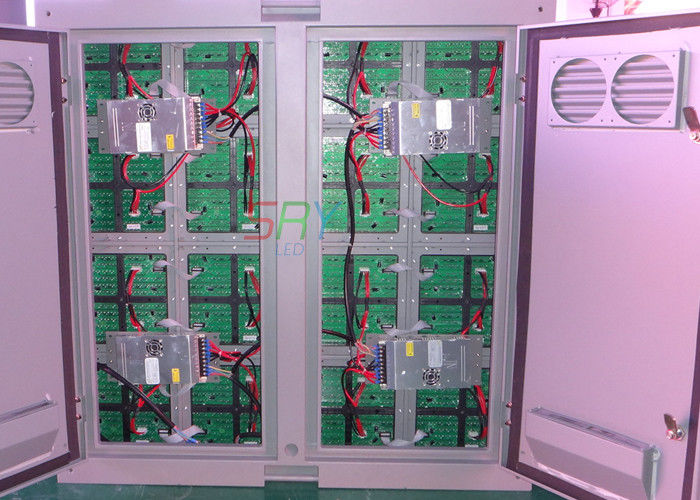

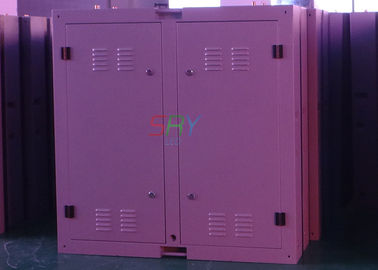

Cabinet Pictures:

1R1G1B IP65 P16 LED Screen Cabinet 8000cd / sqm With Steel Cabinet Material
