6mm Pixel Pitch HD LED Display Cabinet SMD3535 For Curved LED Screen

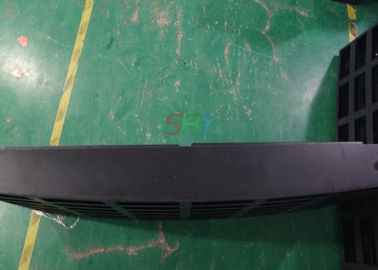

Large Image : 6mm Pixel Pitch HD LED Display Cabinet SMD3535 For Curved LED Screen

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	SRYLED
Certification:	CE, LVD, RoHS
Model Number:	SRY - 0F - P6

Payment & Shipping Terms:

Minimum Order Quantity:	1sqm
Price:	US$ 1,150 - 1,250 / Square Meter
Packaging Details:	Wooden Case (case size based on cabinet size and qty, 2 cabinets in 1 wooden case)
Delivery Time:	10 - 12 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, PayPal
Supply Ability:	3,000 Square Meter per Month

Contact Now

Detailed Product Description

Pixel Pitch:	6mm	LED Encapsulation:	SMD3535
Drive Duty:	1/8scan Constant Current	Brightness:	>6,500cd/sqm
Viewing Angle:	H: 120º, V: 120º	Lifespan:	100,000hrs
MTBF:	10,000hrs	Certificate:	CE, LVD, RoHS
High Light:	LED screen Cabinet , LED display screen

6mm Pixel Pitch HD LED Display Cabinet SMD3535 For Curved LED Screen

Decription:

1. One square meter with 27,777dots pixels ensures P6 LED display screen high definition.

2. Brightness higher than 6,500cd/sqm ensures audiences could see the display screen clearly.

3. Waterproof: IP65 makes sure the display screen keep working in raining days.

4. Wide viewing angle: H: 120º, V: 120º .

Features:

1. Screen working humidity: 10% - 95%.

2. Screen working temperature: -20ºc - +60ºc.

3. Screen brightness can be adjustable via LED Studio.

4. Energy saving design makes sure low power consumption.

Specificition:

Pixel Pitch	6mm
Pixel Density	27,777dots/sqm
Color Configuration	1R1G1B 3in1
LED Encapsulation	SMD3535
Module Resolution	32dots x 16dots
Module Size	192mm x 96mm
Cabinet Resolution	96dots x 96dots
Cabinet Size	1,152mm x 576mm
Screen Resolution	192dots x 96dots
Max. Power Consumption	1,000W/sqm
Ave. Power Consumption	300W/sqm
Refresh Rate	2,000HZ
Frame Rate	120frame/sec
Waterproof	IP65
Lifespan	100,000hrs
MTBF	10,000hrs
Certificate	CE, LVD, RoHS

Application:

Business Organizations	Supermarket, large-scale shopping malls, exclusive agency, chain shops, largescale sales, starrated hotels, restaurants, travel agencies, pharmacy.
Financial Organizations	Banks, negotiable securities, funds, insurance companies, pawnshops; Non-profit Organizations: Telecommunications, post offices, hospital, schools;
Public Places	Subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers; Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers;
Entertainments	Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course

Application Pictures:

6mm Pixel Pitch HD LED Display Cabinet SMD3535 For Curved LED Screen

Competitive Advantages:

1. High refresh rate: >2,000HZ

2. Longlife span, energy-saving design and lower power consumption

3. High brightness, high definition, wider viewing angle. Waterproof IP: 65

4. CE, LVD, RoHS certified, 2 full years warranty
