Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 10mm | Color Configuration: | 1R1G1B 3in1 |
|---|---|---|---|
| LED Encapsulation: | SMD3535 | Module Size: | 320mm X 160mm |
| Module Weight: | 0.50kg | Cabinet Size: | 9600mm X 9600mm |
| Cabinet Weight: | 25kg | Warranty: | 2 Full Years |
| High Light: | LED screen Cabinet,LED Cabinet |
||
Outdoor Waterproof Die Casting MG Led Display Cabinet 960mm X 960mm
Decription:
960mm x 960mm Outdoor Waterproof Die - casting Mg LED Cabinet, Rental Use Cabinet. Using Mg alloy
to makes the cabinet lighter than die - casting Al LED cabinet.
1. Ultra-light: ghter 40% than die - casting Al cabinet
2.Super slim: high-strength,more slim than aluminum in the design,thinner around 30%
3. Fast cooling: excellent heat dissipation performance to protect the module circuit
4. Anti-interference: special anti electromagnetic interference function
5. High strength: support the weight of 300kg through tension test,more strength than aluminum
6. Easy installation: installed by quick lock for 20s only
7. High precision: seamless splicing though CNC machining
8. High universality: can be processed according to module drawing,used for outdoor and indoor
Specification:
|
Pixel Pitch |
10mm |
|
Pixel Density |
10,000dots/sqm |
|
Tube Chip Color |
Full Color |
|
Color Configuration |
1R1G1B 3in1 |
|
LED Encapsulation |
SMD3535 |
|
Module Size |
320mm x 160mm |
|
Module Resolution |
32dots x 16dots |
|
Cabinet Size |
960mm x 960mm |
|
Cabinet Resolution |
96dots x 96dots |
|
Drive Duty |
1/4Constant Current |
|
Brightness |
>6,500nits |
|
Viewing Distance |
10m - 100m |
|
Viewing Angle |
H: 120°, V: 120° |
|
Refresh Rate |
2,000HZ |
|
Frame Rate |
120frame/sec |
|
Grey Grade |
256levels of Each Color |
|
Color Grade |
16.7M |
|
Power Input |
5V - 40A, AC110V/ 220V/ 50HZ |
|
Max Power Consumption |
390W/sqm |
|
Ave. Power Consumption |
195W/sqm |
|
Storage Temperature |
-40℃ - +80℃ |
|
Working Temperature |
-20℃ - +60℃ |
|
Blind Spot Rate |
<1/10,000 |
|
MTBF |
>10,000 Hours |
|
Life Span |
>100,000 Hours |
| Waterproof | IP65 |
|
Cabinet Weight |
25kg |
|
Operating Humidity |
10% - 95% |
|
Control System |
Synchronous, Asynchronous |
|
Operating System |
Win 98, Win2000, XP, 07.etc |
|
Input Source |
All Format (AVI, MPEG,VOB, RM, etc) |
|
Certificate |
CE, LVD, RoHS |
Application:
Widely using for music concert, theater, stadium, showroom, stage, monitoring room and etc.

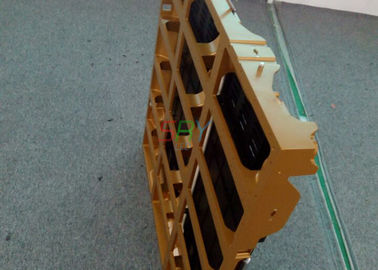

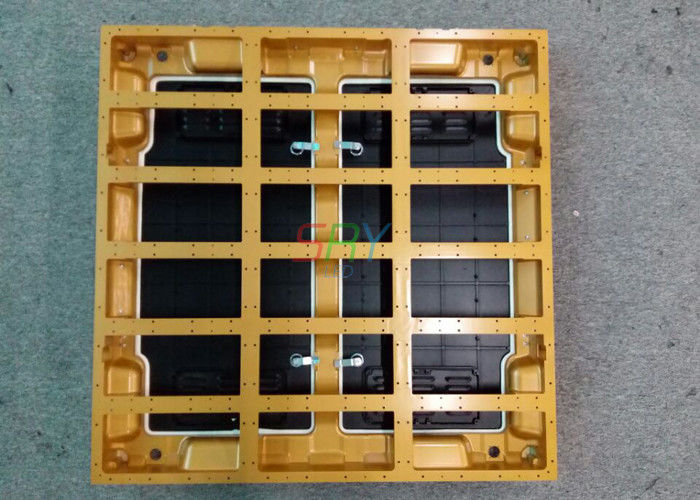

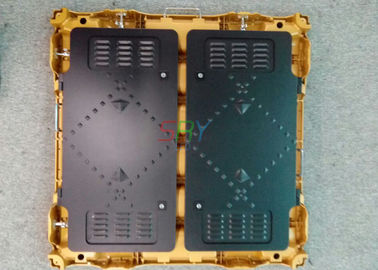

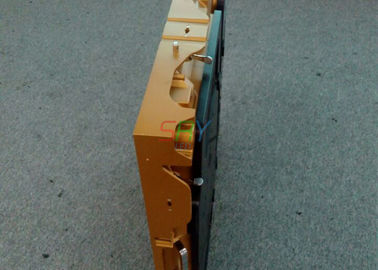

Pictures:
Competitive Advantages:
1. Vivid and brilliant color, sharp and smooth images.
2. 24hours per 7 days, 2 full years warranty.
3. fast installation and easy to install.
