Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 5mm | Color Configuration: | 1R1G1B 3in1 |
|---|---|---|---|
| LED Encapsulation: | SMD3528 | Cabinet Size: | 640mm X 640mm |
| Cabinet Weight: | 12kg | Cabinet Color: | Orange(Optional) |
| Cabinet Material: | Die - Casting Aluminum | Warranty: | 2 Full Years |
| High Light: | LED screen Cabinet,LED Cabinet |
||
Popular Orange Color Led Display Cabinet 640mm X 640mm Lightweight
Decription:
P5 Indoor Orange Color 640mm x 640mm Die - casting Aluminum LED Cabinet, Rental Use. Die - casting aluminum cabinet design, makes it easy and fast to install.
3. Energy saving design
Max. power consumption: 800W/sqm
Ave. power consumption: 270W/sqm
4. Great heat disspation design
Specification:
|
Pixel Pitch |
5mm |
|
Pixel Density |
40,000dots/sqm |
|
Tube Chip Color |
Full Color |
|
Color Configuration |
1R1G1B 3in1 |
|
LED Encapsulation |
SMD3528 |
|
Module Size |
320mm x 160mm |
|
Module Resolution |
64dots x 32dots |
|
Cabinet Size |
640mm x 640mm |
|
Cabinet Resolution |
128dots x 128dots |
|
Drive Duty |
1/16 Constant Current |
|
Brightness |
>1,800nits |
|
Viewing Distance |
5m - 50m |
|
Viewing Angle |
H: 120°, V:120° |
|
Refresh Rate |
2,000HZ |
|
Frame Rate |
120frame/sec |
|
Grey Grade |
256levels of Each Color |
|
Color Grade |
16.7M |
|
Power Input |
5V - 40A, AC110V/ 220V/ 50HZ |
|
Max Power Consumption |
800W/sqm |
|
Ave. Power Consumption |
270W/sqm |
|
Storage Temperature |
-40℃ - +80℃ |
|
Working Temperature |
-20℃ - +60℃ |
|
Blind Spot Rate |
<1/10,000 |
|
MTBF |
>10,000 Hours |
|
Life Span |
>100,000 Hours |
|
Cabinet Weight |
12kg |
|
Operating Humidity |
10% - 95% |
|
Control System |
Synchronous, Asynchronous |
|
Operating System |
Win 98, Win2000, XP, 07.etc |
|
Input Source |
All Format (AVI, MPEG,VOB, RM, etc) |
|
Certificate |
CE, LVD, RoHS |
Application:
Widely using for music concert, theater, stadium, showroom, stage, monitoring room and etc.

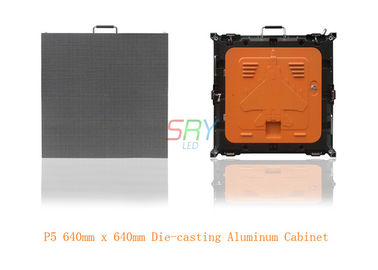

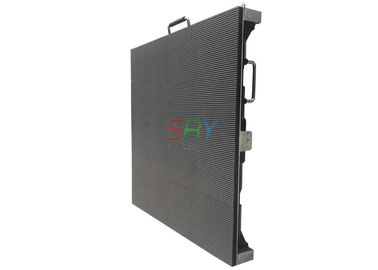

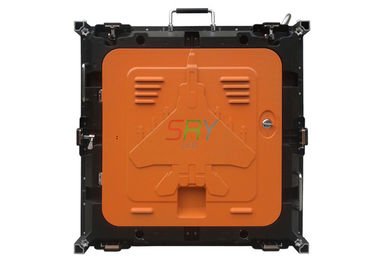

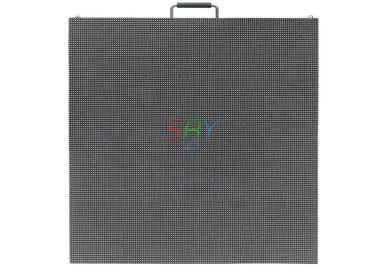

Pictures:
Competitive Advantages:
1. Vivid and brilliant color, sharp and smooth images.
2. Superb performance/price ratio solution for rental market.
3. 24/7 professional after sales service, and on-site service is available.
4. Plug & Play, No tools, 10 Seconds for one panel installation / dismantle.
5. One set cabinet structure is compatible with various pixel pitches, easily have another new screen by
changing LED module.
6. Support different shapes installation: Flat and curved ,create infinite stage styles.
