High Brightness P6 Super Slim Aluminum Led Cabinet 768mm X 768mm Smd3528

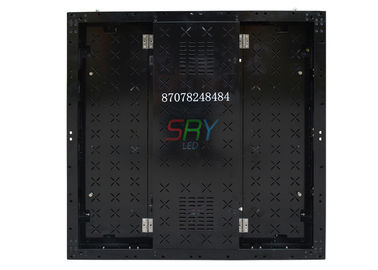

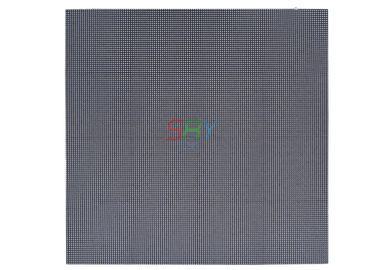

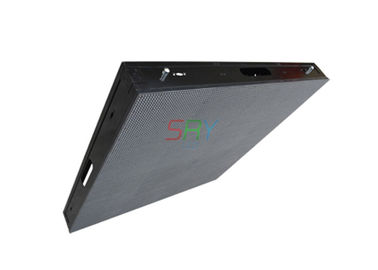

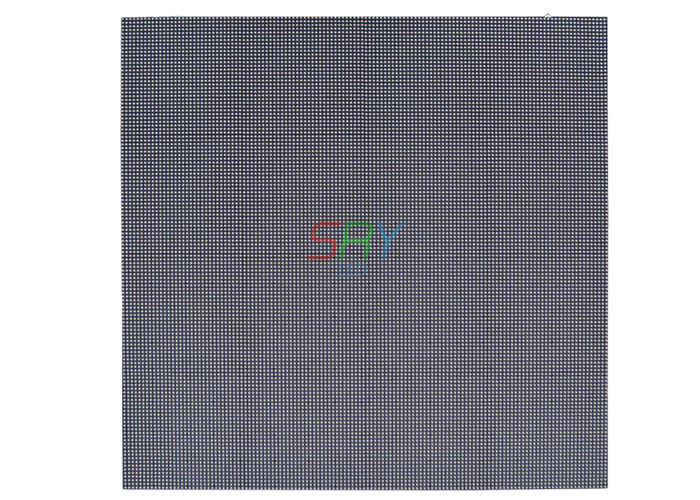

Large Image : High Brightness P6 Super Slim Aluminum Led Cabinet 768mm X 768mm Smd3528

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	SRYLED
Certification:	CE, LVD, RoHS
Model Number:	SRYLED - IFC - P6

Payment & Shipping Terms:

Minimum Order Quantity:	1sqm
Price:	US$ 650 - 750 / Square Meter
Packaging Details:	Wooden Case (wooden case size depend on cabinet quantity)
Delivery Time:	10 - 12 Work Days
Payment Terms:	T/T, PayPal, Western Union
Supply Ability:	1,000 Square Meter per Month

Contact Now

Detailed Product Description

Pixel Pitch:	6mm	Color Configuration:	1R1G1B 3in1
LED Encapsulation:	SMD3528	Cabinet Size:	768mm X 768mm
Cabinet Weight:	18kg	Cabinet Color:	Black(Optional)
Cabinet Material:	Stainless Steel	Warranty:	2 Full Years
High Light:	LED screen Cabinet , LED Cabinet

High Brightness P6 Super Slim Aluminum Led Cabinet 768mm X 768mm Smd3528

Decription:

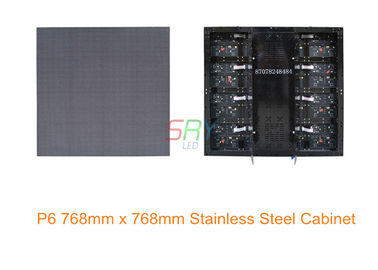

P6 Indoor Full Color 768mm x 768mm LED Display Cabinet, Black Stainless Steel LED Cabinet. Super slim cabinet design makes the cabinet more beautiful.

Features:

1. High flatness precision: with die-cast aluminum technology, the tolerance of cabinet and module are controlled within 0.1mm, screen flatness and split joint gap are controlled within 0.3mm.

2. High color consistency and contrast: The module mask is designed with rubber material, no screws needed, high color contract and flatness.

3. High heat stability: great heat dissipation design, with heat conduction rubber, PCB aluminum casing and dissipation system.

4. High-end display effect: high refresh, high gray scale, high color contrast, and high quality picture effect.

5. High structure performance: easy connection of each components, modules and HUB card without flat cables, modules and systems without power cable.

6. Easy maintenance: each module can be dismantled and installed without taking out power, system card and any other components.

7. Beautiful appearance: humanized arc handle design, it's a perfect show of technology and art.

Specification:

Pixel Pitch	6mm
Pixel Density	27,777dots/sqm
Tube Chip Color	Full Color
Color Configuration	1R1G1B 3in1
LED Encapsulation	SMD3528
Module Size	192mm x 192mm
Module Resolution	32dots x 32dots
Cabinet Size	768mm x 768mm
Cabinet Resolution	128dots x 128dots
Cabinet Weight	18kg
Drive Duty	1/16 Constant Current
Brightness	>1,500nits
Viewing Distance	6m - 60m
Viewing Angle	H: 120°, V: 120°
Refresh Rate	2,000HZ
Frame Rate	120frame/sec
Grey Grade	256levels of Each Color
Color Grade	16.7M
Power Input	5V - 40A, AC110V/ 220V/ 50HZ
Max Power Consumption	420W/sqm
Ave. Power Consumption	120W/sqm
Storage Temperature	-40℃ - +80℃
Working Temperature	-20℃ - +60℃
Blind Spot Rate	<1/10,000
MTBF	>10,000 Hours
Life Span	>100,000 Hours
Operating Humidity	10% - 95%
Control System	Synchronous, Asynchronous
Operating System	Win 98, Win2000, XP, 07.etc
Input Source	All Format (AVI, MPEG,VOB, RM, etc)
Certificate	CE, LVD, RoHS
