Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 6mm | Color Configuration: | 1R1G1B 3in1 |
|---|---|---|---|
| LED Encapsulation: | SMD3528 | Cabinet Size: | 576mm X 576mm |
| Cabinet Weight: | 10kg | Cabinet Color: | Blue(Optional) |
| Cabinet Material: | Die - Casting Aluminum | Warranty: | 2 Full Years |
| High Light: | LED screen Cabinet,LED Cabinet |
||
P6 Indoor Full Color Cast Aluminum Cabinet Led Display Light Weight 576mm X 576mm Led Cabinet
Decription:
P6 Indoor Full Color 576mm x 576mm LED Cabinet, Blue Die - casting Aluminum LED Cabinet. Super slim cabinet design and more energy - saving design makes the cabinet more beautiful.
Specification:
|
Pixel Pitch |
6mm |
|
Pixel Density |
27,777dots/sqm |
|
Tube Chip Color |
Full Color |
|
Color Configuration |
1R1G1B 3in1 |
|
LED Encapsulation |
SMD3528 |
|
Module Size |
192mm x 192mm |
|
Module Resolution |
32dots x 32dots |
|
Cabinet Size |
576mm x 576mm |
|
Cabinet Resolution |
96dots x 96dots |
| Cabinet Weight | 10kg |
|
Drive Duty |
1/16 Constant Current |
|
Brightness |
>1,500nits |
|
Viewing Distance |
6m - 60m |
|
Viewing Angle |
H: 120°, V: 120° |
|
Refresh Rate |
2,000HZ |
|
Frame Rate |
120frame/sec |
|
Grey Grade |
256levels of Each Color |
|
Color Grade |
16.7M |
|
Power Input |
5V - 40A, AC110V/ 220V/ 50HZ |
|
Max Power Consumption |
420W/sqm |
|
Ave. Power Consumption |
120W/sqm |
|
Storage Temperature |
-40℃ - +80℃ |
|
Working Temperature |
-20℃ - +60℃ |
|
Blind Spot Rate |
<1/10,000 |
|
MTBF |
>10,000 Hours |
|
Life Span |
>100,000 Hours |
|
Operating Humidity |
10% - 95% |
|
Control System |
Synchronous, Asynchronous |
|
Operating System |
Win 98, Win2000, XP, 07.etc |
|
Input Source |
All Format (AVI, MPEG,VOB, RM, etc) |
|
Certificate |
CE, LVD, RoHS |
Application:
Widely using for music concert, theater, stadium, showroom, stage, monitoring room and etc.

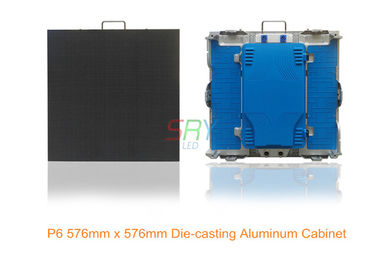

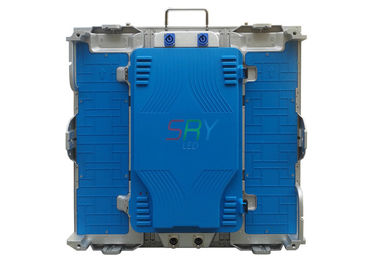

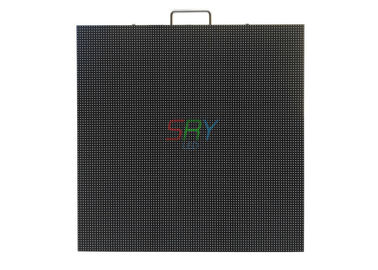

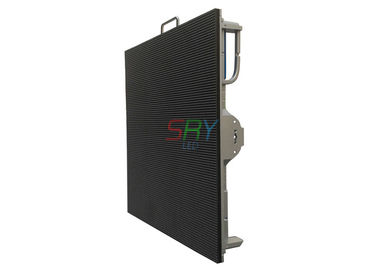

Pictures:
Competitive Advantages:
1. Vivid and brilliant color, sharp and smooth images.
2. Superb performance/price ratio solution for rental market.
3. 24/7 professional after sales service, and on-site service is available.
4. Plug & Play, No tools, 10 Seconds for one panel installation / dismantle.
5. Support different shapes installation: Flat and curved ,create infinite stage styles.
6. One set cabinet structure is compatible with various pixel pitches, easily have another new screen by
changing LED module.
