Product Details:
Payment & Shipping Terms:
|
| Input Voltage: | AC 110V - 220V ±15%, 50HZ | Cabinet Material: | Die - Casting Aluminum |
|---|---|---|---|
| Cabinet Size: | 576mm X 576mm | Cabinet Weight: | 10kg |
| MTBF: | >10,000hours | Lifespan: | 100,000hours |
| Certificate: | CE, LVD, RoHS | ||
| High Light: | LED screen Cabinet,LED Cabinet |
||

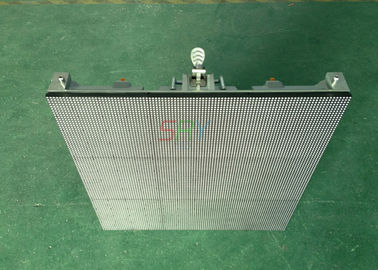

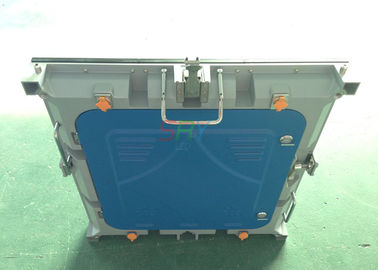

Portable 6mm Outdoor Full Color LED Display Cabinet Die casting Aluminum
Decription:
Portable 6mm Outdoor Full Color Die-casting Aluminum Waterproof IP65 LED Cabinet
1. High Brightness
Outdoor P6 with big SMD LED, its brightness is higher than 6,500nits.
2. Portable design
With fast lock on cabinet sides, it is easy to install and uninstall.
3. Energy-daving design
Ave. power cunsumption for each square meter only 300W/sqm.
2. Cabinet thinkness: 70mm
3. Best Viewing angle: H: 120º, V: 120º
4. Best viewing distance: 6m - 60m
Specification:
|
Pixel Pitch6 |
6mm |
|
Pixel Density |
27,777dots/sqm |
|
Tube Chip Color |
Full Color |
|
Color Configuration |
1R1G1B 3in1 |
|
LED Encapsulation |
SMD3535 |
|
Module Size |
192mm x 192mm |
|
Module Resolution |
32dots x 32dots |
|
Cabinet Size |
576mm x 576mm |
|
Cabinet Resolution |
96dots x 96dots |
|
Drive Duty |
1/8 Constant Current |
|
Brightness |
>6,500nits |
|
Viewing Distance |
6m -60m |
|
Viewing Angle |
H: 120°, V:120° |
|
Refresh Rate |
2,000HZ |
|
Frame Rate |
120frame/sec |
|
Grey Grade |
256levels of Each Color |
|
Color Grade |
16.7M |
|
Power Input |
AC 110V - 220V ±15%, 50HZ |
|
Max Power Consumption |
1,200W/sqm |
|
Ave. Power Consumption |
300W/sqm |
|
Storage Temperature |
-40℃ - +80℃ |
|
Working Temperature |
-20℃ - +60℃ |
|
Blind Spot Rate |
<1/10000 |
|
MTBF |
>10,000 Hours |
|
Life Span |
>100,000 Hours |
|
Cabinet Weight |
10kg |
|
Operating Humidity |
10% - 95% |
|
Control System |
Synchronous, Asynchronous |
|
Operating System |
Win 98, Win2000, XP, 07.etc |
|
Input Source |
All Format (AVI, MPEG,VOB, RM, etc) |
|
Certificate |
CE, LVD, RoHS |
Application:
Outdoor big music concert, movie theater, fitness hall, country club, wedding ceremony, brithday ceremony, meeting room, stage shows, exhibitions and etc stage rental use

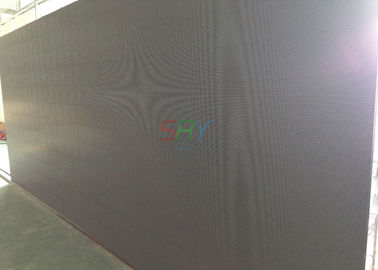

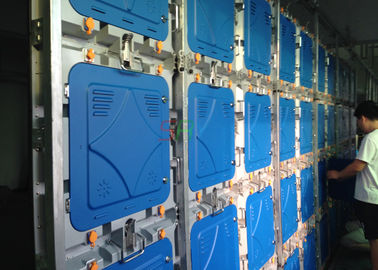

Application Pictures:
Competitive Advantages:
1. Seamless splice design
2. Energy saving design
3. Super light cabinet design
4. Super slim cabinet design
5. Low noise and enviromental design
